Wire Ropes and Wire Rope Sling

Features & Benefits

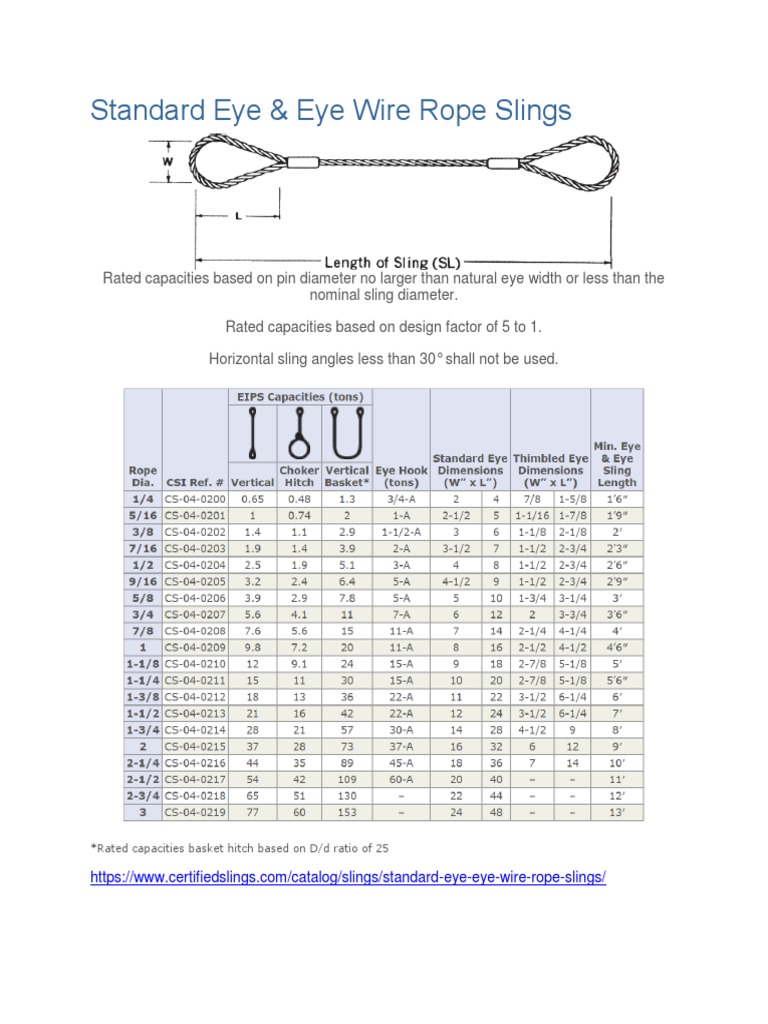

# WIRE ROPE AND SLING BASICS Wire rope slings are both flexible and resistant to abrasion. These characteristics are determined by the rope construction. Fewer wires result in larger diameter wires better abrasion resistance, and reduced flexibility. More wires result in decreased wire diameter, reduced abrasion resistance, increased flexibility, and kink resistance. Wire rope products may be proof-tested upon request. If they contain swaged terminations and will be used as a sling, they will be 100% proof tested. 7X7X7 ## ACKNOWLEDGMENTLift-All all OSHA, ASME B30.9, and Wire Rope Technical Board from the Wire Rope Sling User’s Manual with the permission of the Wire Rope Technical Board and the American Iron and **Standard Combinations** Note: Proof-testing with certification is available for all slings at an additional charge. Tolerances and Minimum Lengths Refer to tables for tolerances and minimum lengths. # WIRE ROPE SLINGS ## Features and Benefits Maintains all the basic _Lift-All_ wire rope sling features plus... **Promotes Safety** • Good abrasion resistance for longer Length • Reserve strength: Integrity of eyes • ## • | Wire Rope Class | Rope Dia.(in.) | Rated Capacities* (tons) | | | 1'Min. Sling Length | Eye Size WXL(in.) | Thimbled Eye Size WXL(in.) | Eye Hook Cap.(tons) | Cresent Thimbled Eye Size WXL(in.) | Slip-Through Thimbled Eye Size WXL(in.) | Sliding Choker Hook''(in.) | |-|-|-|-|-|-|-|-|-|-|-|-| | Wire Rope Class | Rope Dia.(in.) | Vertical | Choker | Basket | 1'Min. Sling Length | Eye Size WXL(in.) | Thimbled Eye Size WXL(in.) | Eye Hook Cap.(tons) | Cresent Thimbled Eye Size WXL(in.) | Slip-Through Thimbled Eye Size WXL(in.) | Sliding Choker Hook''(in.) | | 6X19 EIPS IWRC | 1/4 | 0.65 | 0.48 | 1.3 | 1'-6" | 2×4 | 0.88×1.63 | 1 | 2×4 | 2.13×4.13 | 3/8 | | 6X19 EIPS IWRC | 5/16 | 1.0 | 0.74 | 2.0 | 1'-9" | 2.5×5 | 1.06×1.88 | 1 | 2×4 | 2.50×4.13 | 3/8 | | 6X19 EIPS IWRC | 3/8 | 1.4 | 1.1 | 2.9 | 2'-0" | 3×6 | 1.13×2.13 | 1.5 | 2×4 | 2.50×4.13 | 3/8 | | 6X19 EIPS IWRC | 7/16 | 1.9 | 1.4 | 3.9 | 2'-3" | 3.5×7 | 1.25×2.25 | 2 | 2×5 | 2.38×4.38 | 1/2 | | 6X19 EIPS IWRC | 1/2 | 2.5 | 1.9 | 5.1 | 2'-6" | 4×8 | 1.5×2.75 | 3 | 2.25×6 | 2.38×4.38 | 1/2'' | | 6X19 EIPS IWRC | 9/16 | 3.2 | 2.4 | 6.4 | 2'-9" | 4.5×9 | 1.5×2.75 | 4.5 | 2.25×7 | 2.38×4.38 | 5/8 | | 6X19 EIPS IWRC | 5/8 | 3.9 | 2.9 | 7.8 | 3'-0" | 5×10 | 1.75×3.25 | 4.5 | 2.75×7 | 3.38×6.63 | 5/8'' | | 6X19 EIPS IWRC | 3/4 | 5.6 | 4.1 | 11 | 3'-6" | 6×12 | 2×3.75 | 7 | 3.25×8.5 | 3.38×6.63 | 3/4'' | | 6X19 EIPS IWRC | 7/8 | 7.6 | 5.6 | 15 | 4'-0" | 7×14 | 2.25×4.25 | 11 | 4.5×10 | 3.75×7.13 | 7/8 | | 6X19 EIPS IWRC | 1 | 9.8 | 7.2 | 20 | 4'-6" | 8×16 | 2×4.5 | 11 | 4.5×11.5 | 3.75×7.13 | 1 | | 1-1/8 | 12 | 9.1 | 24 | 5'-0" | 9×18 | 2.88×5.13 | 15 | 4.88×13 | 4.38×8.38 | 1-1/8 | | | 6X37 EIPS IWRC | 1-1/4 | 15 | 11 | 30 | 5'-6" | 10×20 | 3.5×6.5 | 15 | 5.5×14.5 | 4.38×8.38 | 1-1/4 | | 6X37 EIPS IWRC | 1-3/8 | 18 | 13 | 36 | 6'-0" | 11×22 | 3.5×6.25 | 22 | 6×16 | 5×9.5 | 1-3/8 | | 6X37 EIPS IWRC | 1-1/2 | 21 | 16 | 42 | 7'-0" | 12×24 | 3.5×6.25 | 22 | 6×17.5 | 5×9.5 | 1-1/2'' | | 6X37 EIPS IWRC | 1-3/4 | 28 | 21 | 57 | 8'-0" | 14×28 | 4.5×9 | 30 | 7×20 | 6.75×11.75 | - | | 6X37 EIPS IWRC | 2 | 37 | 28 | 73 | 9'-0" | 16×32 | 6×12 | 37 | 7×23.5 | 8×14.5 | - | | 6X37 EIPS IWRC | 2-1/4 | 44 | 35 | 89 | 10'-0" | 18×36 | 7×14 | 45 | 8.5×26 | 8×15.5 | - | | 6X37 EIPS IWRC | 2-1/2 | 54 | 42 | 109 | 11'-0" | 20×40 | - | - | 8.5×29.5 | - | - | # BRIDLE SLINGS ## Features and Benefits Maintains all the basic _Lift-All_ plus... • • Bridles provide better load control and balance. • • Independent wire rope core resists crushing. • • Alloy steel hardware assures long life. • Reduces load damage by using xed points on wire rope sling features • Thimble eyes protect wire rope from wear for plus... • # ENDLESS WIRE ROPE SLINGS ## Features and Benefits [Image: R44] **Order length by circumference** Maintains all the basic _Lift-All_ wire rope sling features plus... ## • • Load stability and balance can be achieved by spreading sling legs in a basket or choker hitch. • Rope• Wear points can be shifted to extend sling life. • • The most versatile style of sling - fewer slings to inventory. • Ideal for turning loads. _**Lift-All**_ **Endless Wire Rope Slings are also available** Do not lift with hook in splice area as sling damage may occur. **WARNING** # MULTI-PART CABLED SLINGS ## Features and Benefits General Maintains all the basic **Saves Money** _Lift-All_ wire rope sling features plus… # MULTI-PART BRAIDED SLINGS ## Features and Benefits Maintains all the basic _Lift-All_ wire rope sling features plus... # HOIST LINES AND STEEL BUTTONS ## SWAGED THREADED STUDS • [Image: R12] General Information Web Slings Wire Rope Round Slings Sling Protection Chain Slings Rigging Hardware **Cargo Mesh** **WebSling** SlingsHardware Round Information ChainRigging General Rope Wire

Technical Specifications
