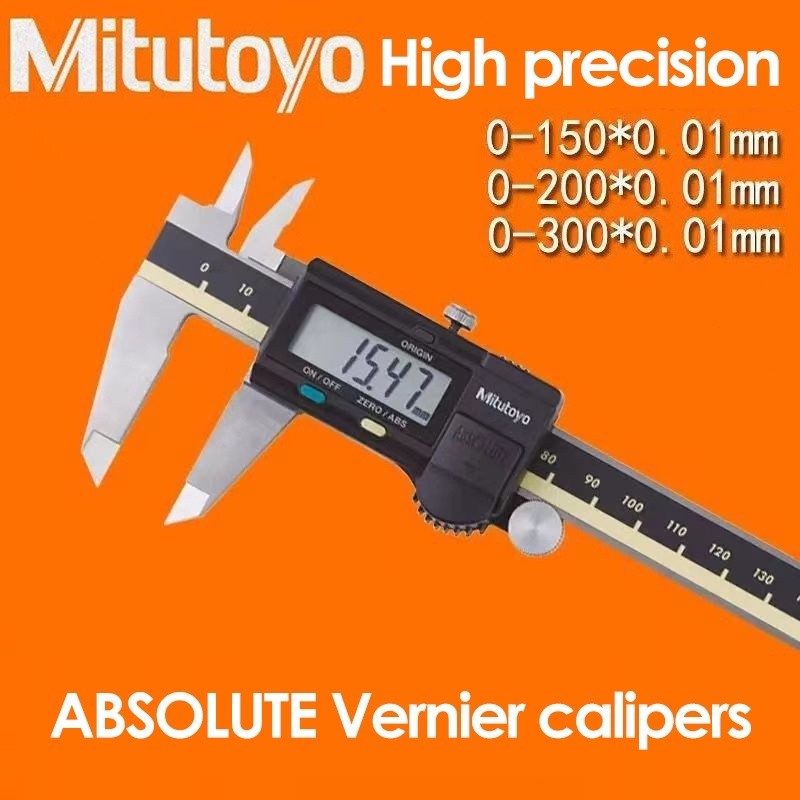

Vernier Caliper

Features & Benefits

# Guide to Vernier Calipers ## What are Vernier Calipers? Vernier calipers are sophisticated measuring instruments designed to accurately measure linear dimensions such as lengths, depths, and diameters. They consist of a static main scale and a sliding Vernier scale, which work in tandem to provide precise measurements. The main scale is fixed, while the Vernier scale can move in parallel along the length of the main scale. ## Shop Vernier Calipers Quantity ## What are Vernier Calipers Used for? - **Taking Inside Measurements**: Vernier calipers can be used to measure the inside diameter of a cylinder or the outside diameter of a rod, pipe, or other cylindrical objects - **Step Measurement**: You can measure the difference in height between two surfaces or steps using Vernier calipers ## How to Use Vernier Calipers 1. Start by closing the jaws and ensuring they are clean for an accurate reading 3. Tighten the jaws until they securely grip the object 5. Once the zero points are aligned, read the value on the main scale immediately to the left of the zero point on the Vernier scale. This is the whole unit of measurement 7. To calculate the total measurement, add the whole unit measurement from the main scale to the fractional part from the Vernier scale. For example, if the main scale reads 5mm and the Vernier scale aligns with the 0.2mm mark, your measurement is 5.2mm ## Summary Their ingenious design, accurate readings, and versatility make them indispensable for various applications.

Technical Specifications
