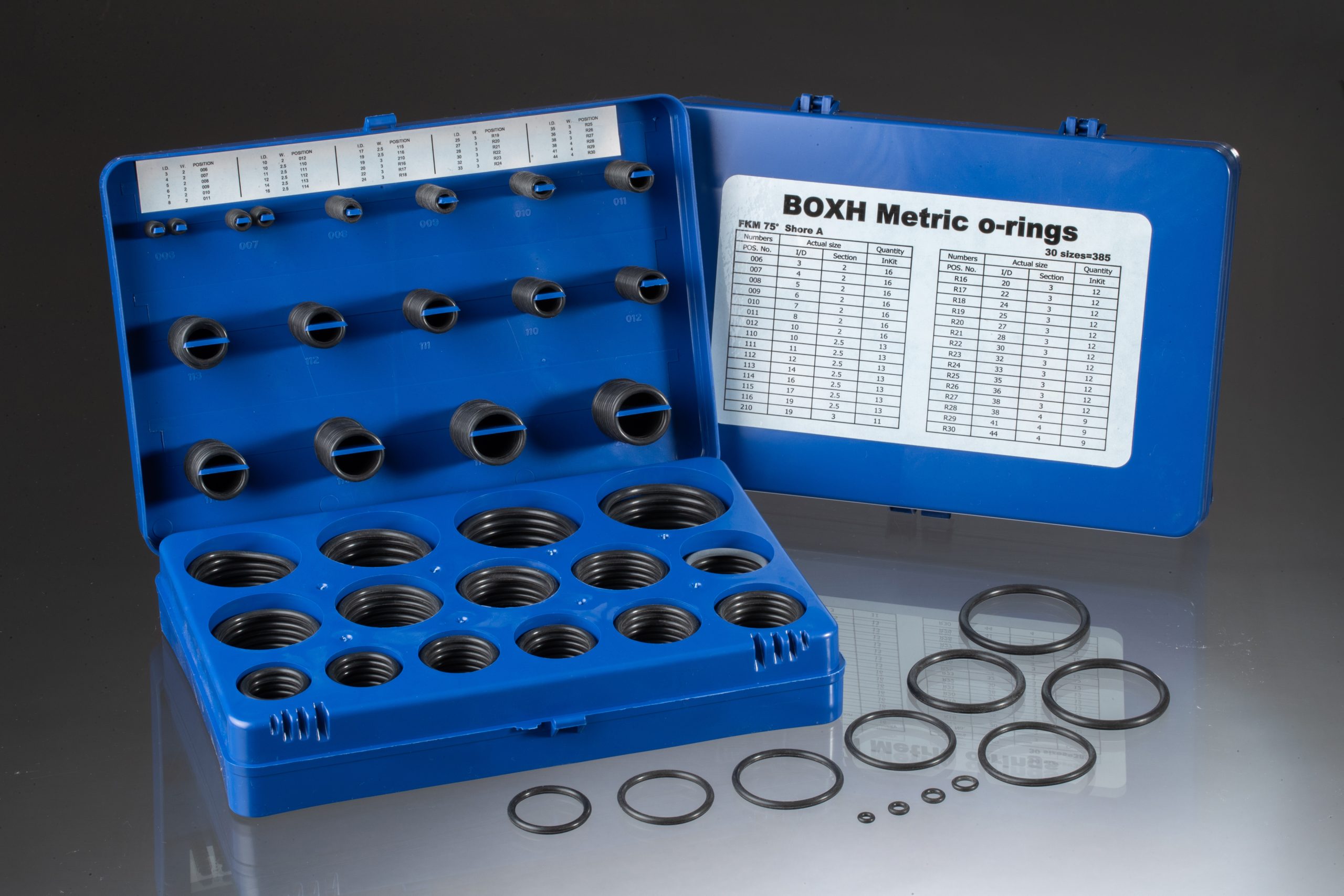

## Chapter 1: What is an O-Ring? An O-ring is a round, elastic gasket used in a wide range of sealing applications, both static and dynamic. Crafted from diverse materials to fit different operating conditions, O-rings offer excellent flexibility, compression set resistance, and chemical compatibility. Understanding O-ring size, groove design, and installation requirements helps ensure proper performance, reduce maintenance, and extend service life in demanding industrial and commercial environments. ## Chapter 3: What are the design considerations and materials used for O-rings? ### O-Ring Materials #### Polyurethane Polyurethane O-rings, classified as thermoplastic elastomers or TPEs, stand out for their exceptional abrasion, extrusion, and cut resistance, coupled with high tensile strength. Polyurethane O-rings possess high chemical resistance to hydrocarbon fuels, mineral oils, greases, and oxygen, as well as excellent flexibility under pressure cycling. #### Neoprene (CR) As one of the earliest synthetic rubber O-ring materials, Neoprene offers moderate resistance to weathering, ozone, oxidation, and flame. Sulfur-cured grades extend Neoprene’s flammability resistance, making it popular for refrigeration, HVAC, automotive, and general industrial sealing needs. Neoprene O-rings are also suitable for use with moderate acids, alkalis, and refrigerants (like R12 and R22), and they're cost-effective compared to high-performance elastomers. ## Chapter 4: What are the sizes of O-Rings? The size of an O-ring is defined by its inner diameter (ID) and cross-sectional diameter (CS). The dimensions of O-rings are commonly specified by the AS568D sizing standard, though a Japanese sizing system is also used. AS568D, established by the Society of Automotive Engineers (SAE), is the aerospace size standard for O-rings. This standard specifies the inner diameters, cross-sectional diameters, and tolerances, and includes a numbering code for O-rings used in sealing applications. The AS568D sizing chart provides configurations in both inches and millimeters, and is widely used by manufacturers to determine O-ring dimensions. Each O-ring size is identified by a code in the format AS568-XXX. In this code, the first digit represents the cross-sectional diameter, while the second digit denotes the inner diameter. ## Chapter 5: What are the different types of O-rings? ### Clear O-Rings They are made of silicone or fluorocarbon that allows for easy detection of contamination, damage, or deformation. ## Chapter 9: O-Rings vs. Gaskets: Differences & Common Applications ### What Are O-Rings? Their circular cross-section allows for uniform sealing in multiple directions, making them ideal for hydraulic and pneumatic systems, aerospace components, and consumer products.
